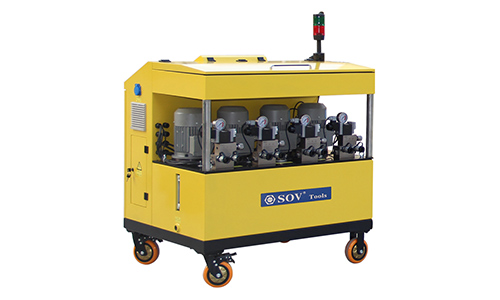

Universal Equipments Products

Features

Displacement Precision: ≤ 0.2mm

Working Voltage: AC380V/50Hz (Three-phase-five wire system)

System Max. Pressure: 700bar

Control Pattern: variable frequency speed control

Control Interface: Human Machine Interface (HMI)

Support network communication point expansion (1-99)

Control Points: 2, 4, 6, 8 point synchronization for single machine

advantage

1) Continuous flow adjustment control keeps heavy loads stable during jacking and landing;

2) The oil inlet speed regulation and the heavy-duty lowering hydraulic circuit not only realize high-precision synchronization during jacking, but also ensure high-precision synchronization during lowering;

3) The process protection function of the flat load valve avoids the common oil cylinder expansion accident when multi-cylinder jacking;

4) On the basis of two-point synchronous jacking, it can be extended to multi-point synchronization of more than 32 points, up to 99 points. In the multi-point synchronous working state, in addition to maintaining the synchronization of the multi-point positions, the load distribution of each fulcrum can also be adjusted according to the user's requirements;

5) Precise lifting: the dynamometer unit and high-precision displacement sensor are completely independent of the jack;

6)Synchronous jacking: dual control of force synchronization and displacement synchronization, automatic call at different stages;

7) Safety: Multiple hydraulic valves and intelligent programs ensure jacking and data safety;

8) Data authenticity: multiple data rights management and: "fool-style" operation to ensure data authenticity;

9) Controllable and real: the jacking data is imported into the equipment database at one time, and the data jacking can be called;

10) Traceability: The jacking results are automatically recorded in the database, which can be viewed, printed and downloaded.

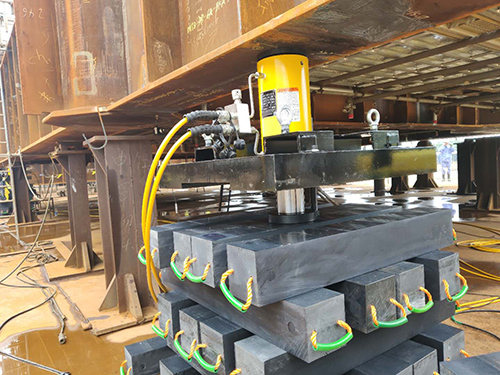

Applicable Industry

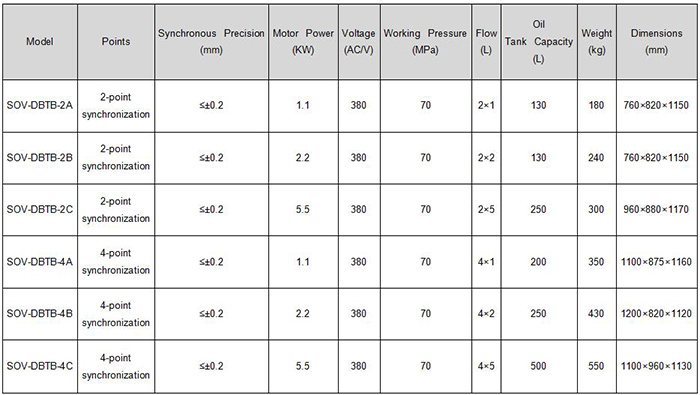

Parameters

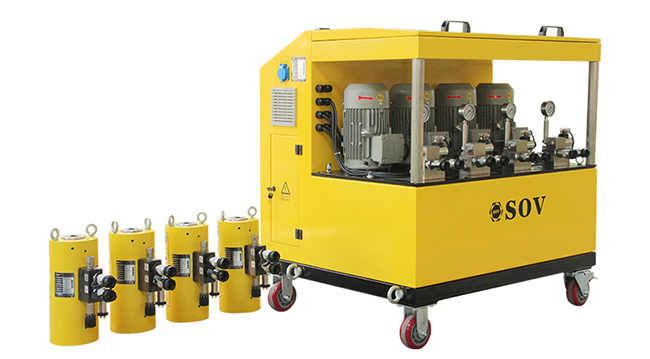

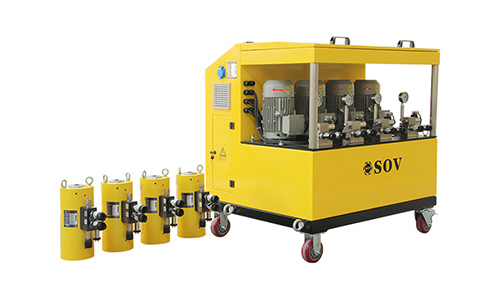

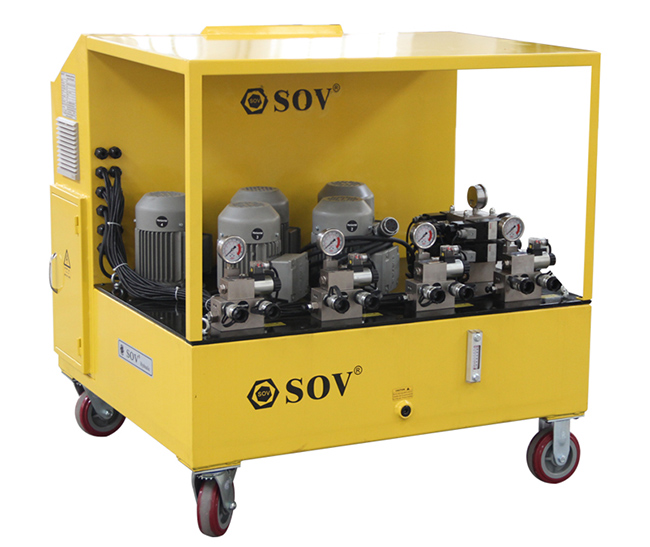

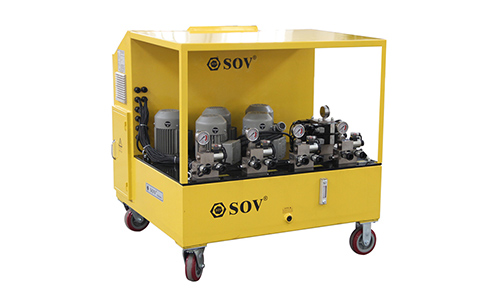

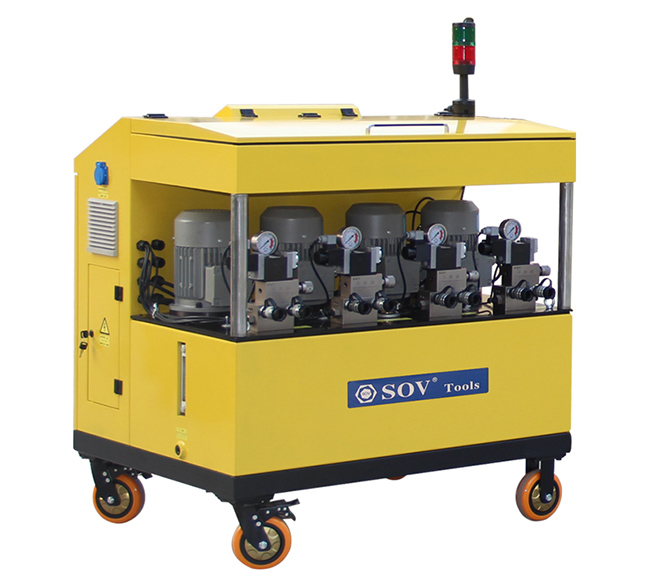

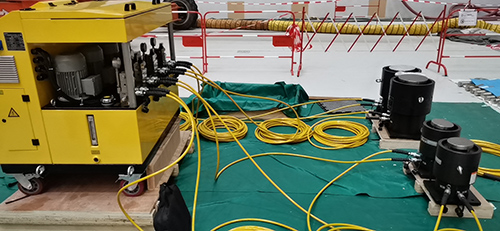

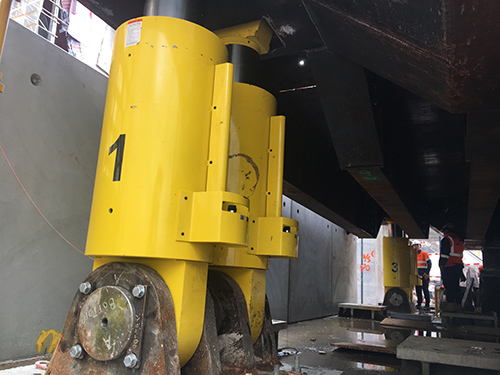

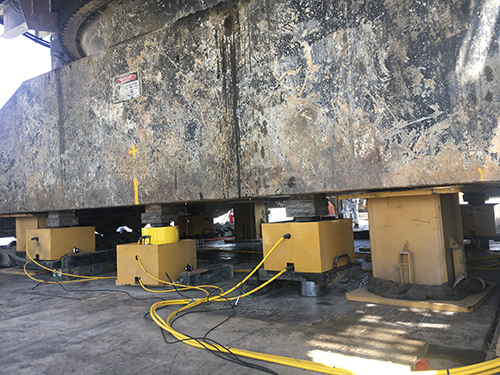

Product display
