Hydraulic Cylinders Products

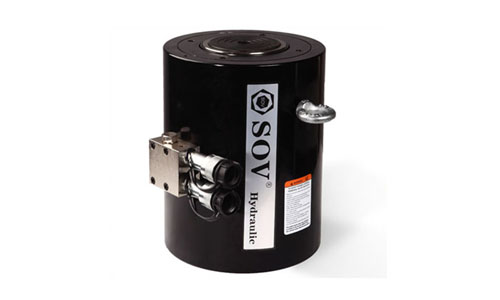

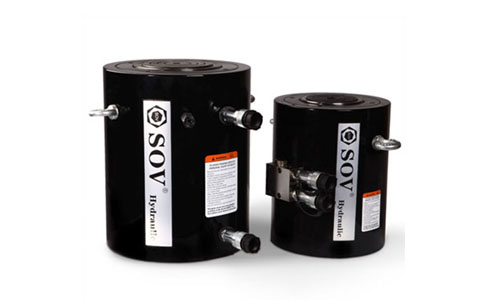

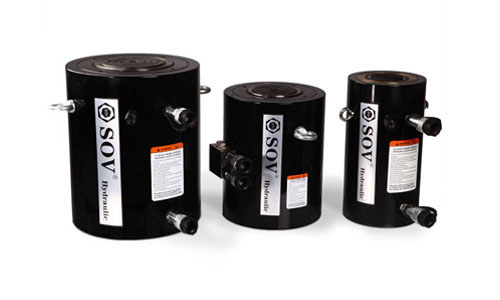

​​Double Acting High Tonnage Hydraulic Cylinders

Features

1. Its safety valve is specially set to prevent overpressure.

2. Both cylinder top and plunger base are equipped with the guide ring to bear an eccentric load of 5%.

3. The cylinder is equipped with lugs for convenient transport, simple structure and easy use.

4. Double action for high return speed.

5. Optional grooved saddle or spherical saddle used for special lifting and loading.

6. Dust cap is installed to extend the life of the cylinder.

7. Special surface treatment for high corrosion resistance.

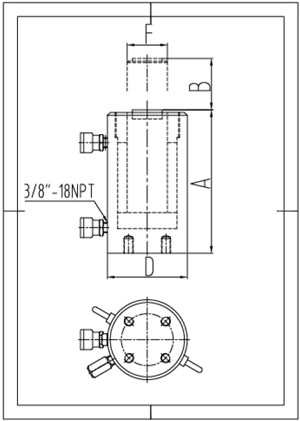

8. The cylinder is designed with two NPT3/8 couplers for convenient use.

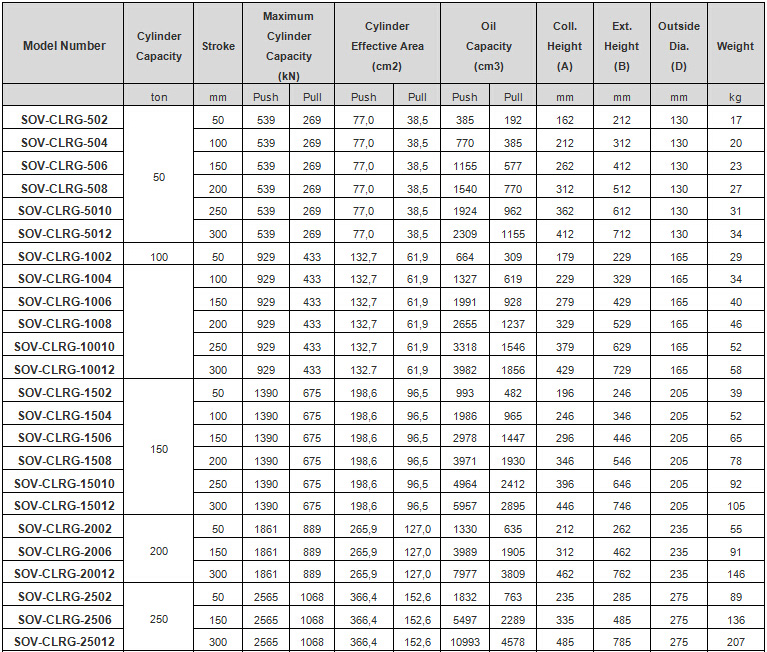

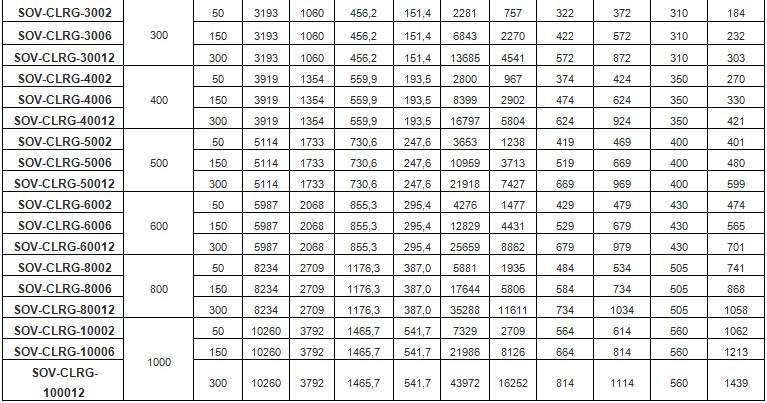

Parameter

Packing

Wooden case packing

After sales service

One year for free repair and replacement
